HFV9400XLC Refrigerated Semi-Trailer

This is the HFV9400XLC refrigerated semi-trailer, a "fresh-keeping specialist" for temperature-sensitive cargo (such as food and pharmaceuticals).
Key features:
  • Suitable dimensions: External (Length:13600mm, Width:2600mm, Height:4000mm) & box (Length:13425mm, Width:2450mm, Height:2470mm) sizes balance transportation compliance and cargo space;
  • Flexible load performance: Total mass of 40000kg, optional curb weights (8100/8400kg), and rated load capacity (31600-31900kg) adapt to different operation demands;

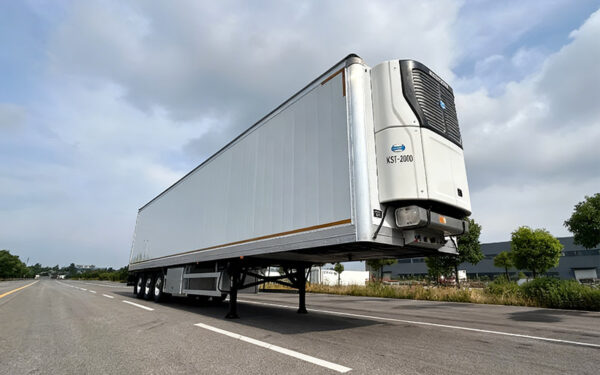

  • Professional refrigeration support: Equipped with Carrier X4-7300/THERMO KING units to maintain stable temperatures for perishable goods.
Follow Us On :

Basic Information
Product Model HFV9400XLC Product Name Refrigerated Semi-Trailer
Dimension Parameters
External Dimensions (mm) Length: 13600, Width: 2600, Height: 4000 Box Size (mm) Length: 13425, Width: 2450, Height: 2470, Wheelbase: 7330+1310+1310
Weight Parameters
Total Mass (kg) 40000 Curb Weight (kg) 8100, 8400
Rated Load Capacity (kg) 31900, 31600
Configuration Details
Refrigeration Unit Carrier X4-7300/THERMO KING Certification ISO9000, CCC

Other features of the refrigerated semi-trailer:

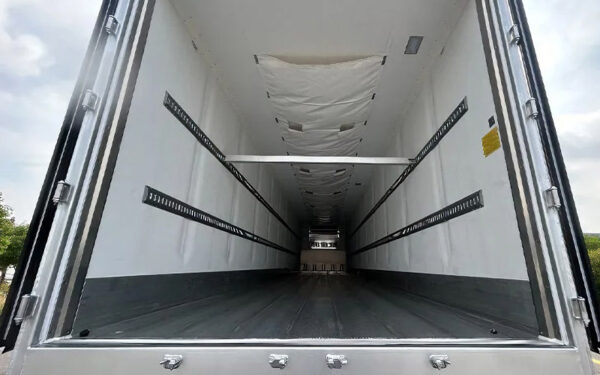

Outer panel: Pre-coated white aluminum panel;
Inner panel: Thermoplastic sheet;
Insulation material: Polyurethane;
Floor: Reinforced air-ducting aluminum floor;
Side panel thickness: 75mm;
Top panel thickness: 80mm;
Front panel thickness: 100mm;
Bottom panel thickness: 64mm;

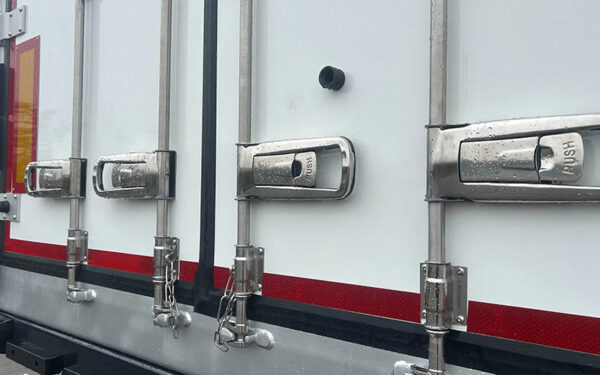

Rear door thickness: 80mm, 5 hinges and 2 locking rods per door;
Side door: 1 single-opening side door, size 1850mm * 900mm;
Suspension: Air suspension, 10T Fuwa axles, single wide tires, 1 spare tire, aluminum alloy rims;
Landing gear: 28T linkage-type landing gear;

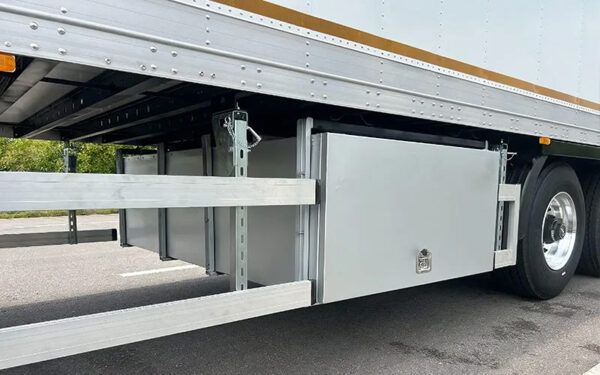

Other configurations: 4 water leak detectors, 3 LED ceiling lights, 280mm high wear-resistant plate; with ventilator, ABS, 50# kingpin; 1 x 1.2m toolbox.
